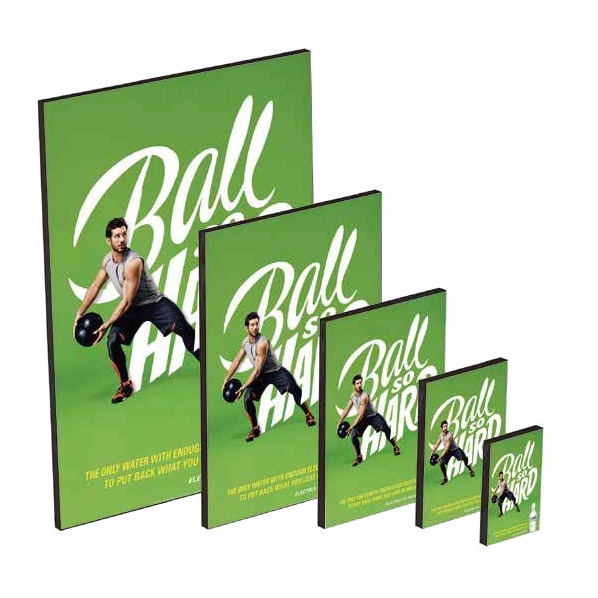

25mm Plastic SEG Picture Frame EM-18A

25mm Plastic SEG Picture Frame EM-18A

A Smarter, Lighter Alternative to Traditional Picture Frames

The EM-18A 25mm Plastic SEG Picture Frame is designed as a modern replacement for conventional glass or aluminum picture frames commonly found in retail, offices, and commercial interiors. By combining a slim 25mm plastic profile with SEG (Silicone Edge Graphic) technology, this frame delivers a cleaner visual presentation, easier graphic changes, and significantly reduced packaging volume.

Unlike traditional framed posters, EM-18A requires no tools for assembly, ships compactly, and allows graphics to be installed or replaced in minutes. It is an ideal solution for brands seeking reusable, lightweight, and cost-efficient visual display systems.

Designed to Replace Traditional Frames

Conventional picture frames are often bulky, fragile, and time-consuming to install. EM-18A solves these issues through a modular plastic SEG structure:

• No glass, no metal, no risk of breakage

• Slim 25mm profile with a modern, minimal appearance

• Quick graphic changes without dismantling the frame

• Reusable frame system for long-term visual updates

This makes EM-18A especially suitable for retail graphics, wall décor, promotional posters, office branding, and commercial signage.

Tool-Free Assembly & Easy Graphic Installation

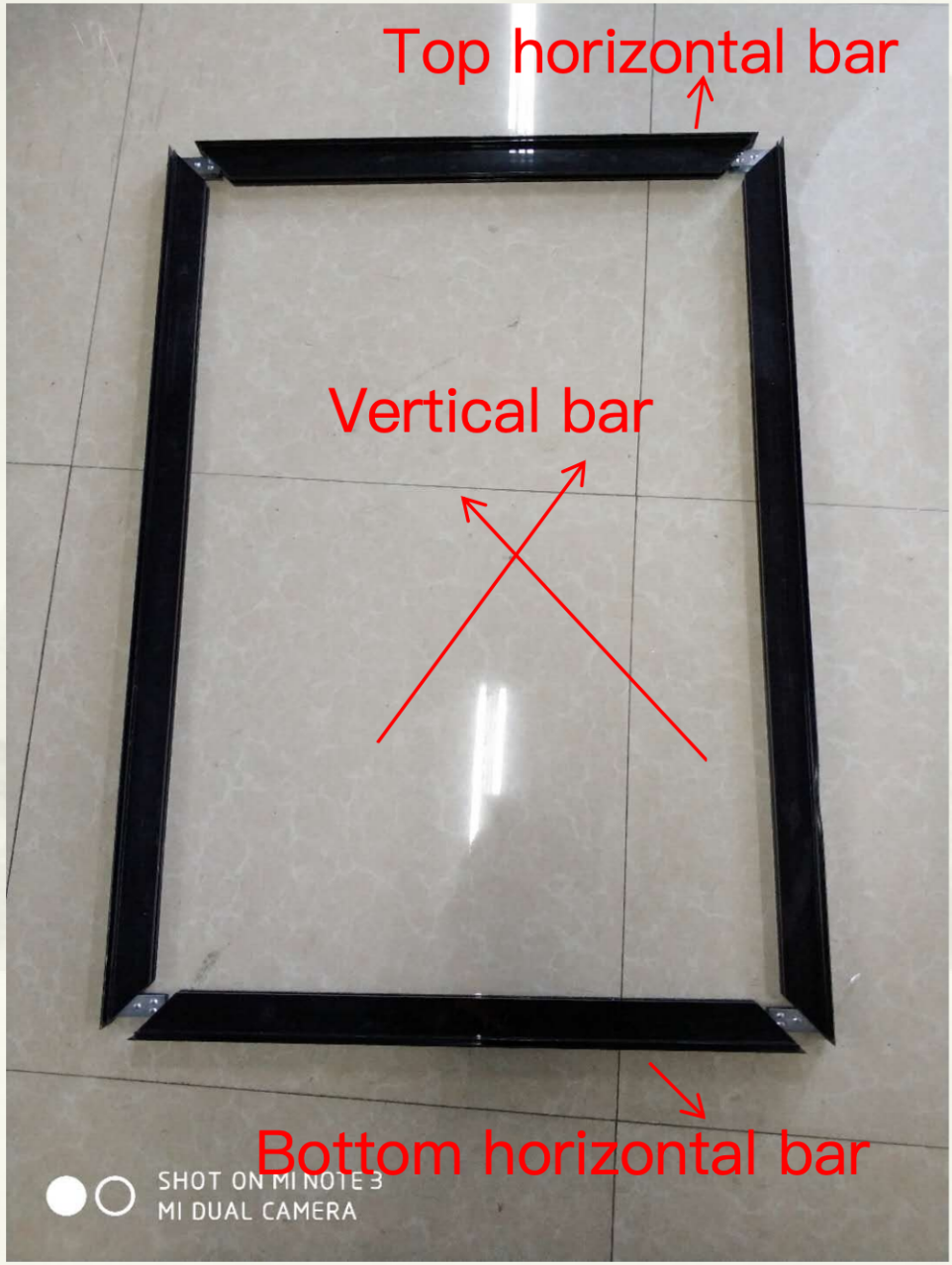

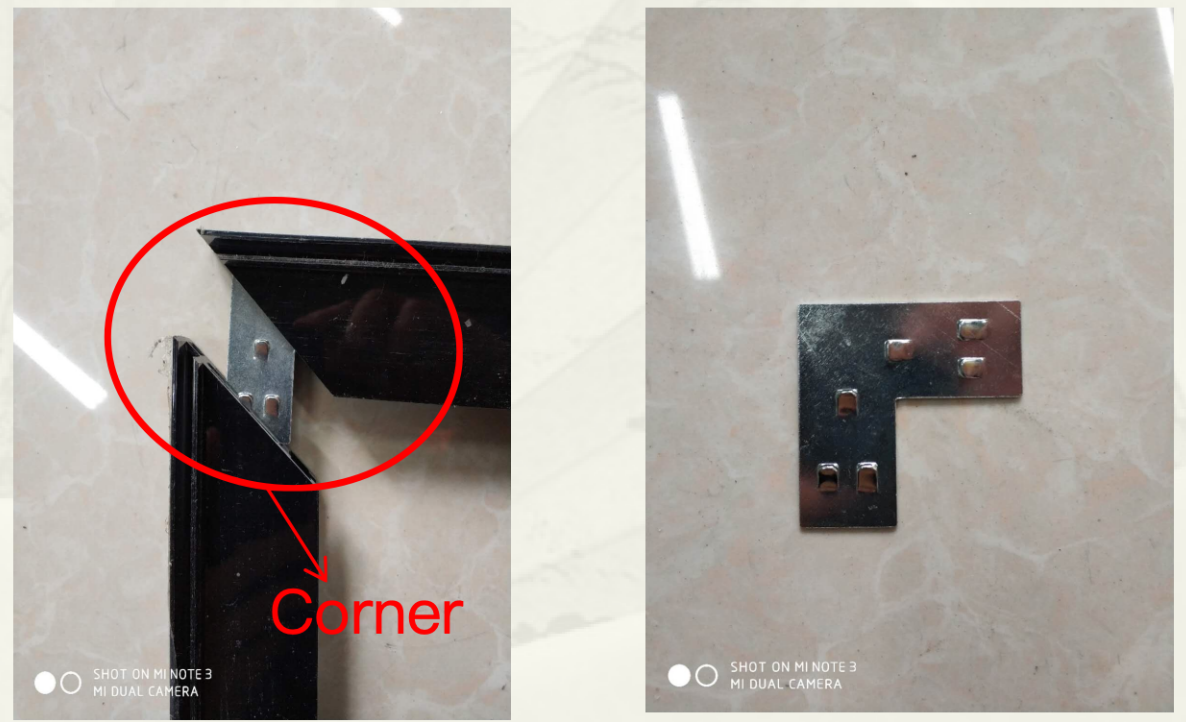

The frame uses push-fit corner connectors and standard wall-mounting hardware, allowing anyone to assemble or disassemble the frame without professional tools.

Graphics are produced using dye-sublimation printing, delivering vibrant colors, smooth gradients, and wrinkle-free edges. The SEG graphic installs cleanly into the frame channel, ensuring a tight, frameless appearance.

Flexible Size System with Extensive Combinations

The EM-18A system is built around standardized profile cutting lengths, making it easy for customers to select and combine sizes.

Standard Profile Lengths (Graphic Edge Lengths)

24", 30", 31.5", 33.5", 36", 48", 60"
210mm, 297mm, 420mm, 594mm, 841mm, 1189mm
182mm, 237mm, 250mm, 354mm, 500mm, 707mm, 1000mm

• 20 standard lengths

• Up to 57 size combinations

• Suitable for both inch and metric markets

Highlighted Popular Sizes

24" × 36" Plastic SEG Frame

• Unit weight: 1.9 kg (4.19 lbs)

• Packing: 10 pcs / carton

• Gross weight: 20.7 kg (45.64 lbs)

• Carton size: 95 × 44 × 13 cm (37.4" × 17.3" × 5.1")

8.3" × 11.7" (A4 Size)

• Unit weight: 0.67 kg (1.48 lbs)

• Packing: 10 pcs / carton

• Gross weight: 7.25 kg (15.98 lbs)

• Carton size: 33.3 × 44 × 13 cm (13.1" × 17.3" × 5.1")

Optimized Packaging for Logistics Efficiency

To reduce shipping costs and damage risk, frames are packed with a long-side + short-side configuration, shrink-wrapped and layered inside reinforced cartons.

• 10 frames per carton

• 5 frame sets per layer

• 4 layers per carton

• Multi-layer cardboard separators for protection

This structure maximizes container loading efficiency and minimizes storage space.

Key Advantages at a Glance

• 25mm slim plastic SEG profile

• Lightweight and compact packaging

• Tool-free assembly and disassembly

• Dye-sublimated fabric graphics

• Easy graphic replacement and reuse

• Wide size compatibility for global markets

• Ideal substitute for traditional mirror-style frames

Applications

• Retail wall displays

• Promotional posters

• Office branding and décor

• Commercial interiors

• Temporary campaigns and seasonal graphics

Q: What makes EM-18A different from traditional picture frames?
A: EM-18A uses a plastic SEG structure instead of glass or metal, making it lighter, safer, easier to install, and more cost-efficient for shipping and storage.

Q: Does the frame require tools for installation?
A: No. The frame uses push-fit connectors and standard wall hardware for quick, tool-free assembly.

Q: Can the graphics be replaced?
A: Yes. SEG fabric graphics can be removed and replaced easily, allowing the frame to be reused multiple times.

Q: What printing method is used for the graphics?
A: Graphics are produced using dye-sublimation printing, ensuring vibrant colors and smooth, wrinkle-free presentation.

Q: Are custom sizes available?
A: Yes. With 20 standard profile lengths, EM-18A supports up to 57 size combinations for flexible customization.

Q: How many frames are packed per carton?
A: Each carton contains 10 frames, packed in a reinforced, layered structure for safe transport.
