Product Description

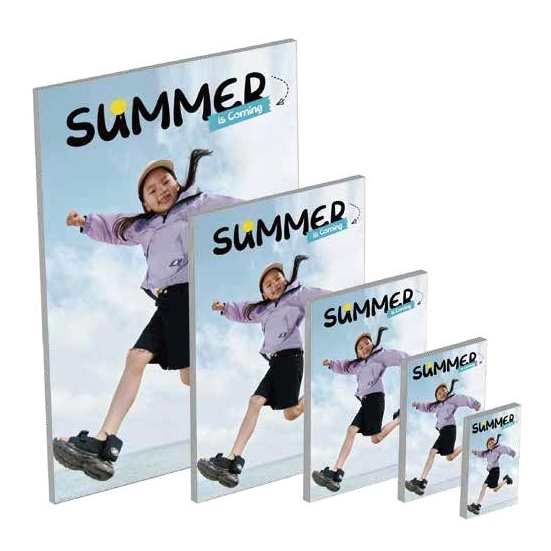

The EM-18A1 23mm Aluminum SEG Picture Frame is a wall-mounted fabric frame system engineered specifically for non-standard and large-format SEG graphics. Designed as a premium extension of Expomax’s plastic SEG frame range (EM-18A), this aluminum version offers greater structural flexibility while maintaining compact packaging and fast installation.
With a modular accessory-based supply concept, EM-18A1 enables customers to assemble, resize, and reconfigure frames locally, significantly reducing lead time, freight cost, and inventory pressure.
Unlike traditional fixed-size picture frames, EM-18A1 is optimized for large wall-mounted SEG lightbox alternatives and non-illuminated fabric frames, especially when a single side exceeds 1 meter.
Ideal for custom wall graphics, retail branding, corporate interiors, and exhibition walls
Supports unlimited frame length extension through connector-based assembly
Suitable for projects requiring frequent size changes or on-site reconfiguration

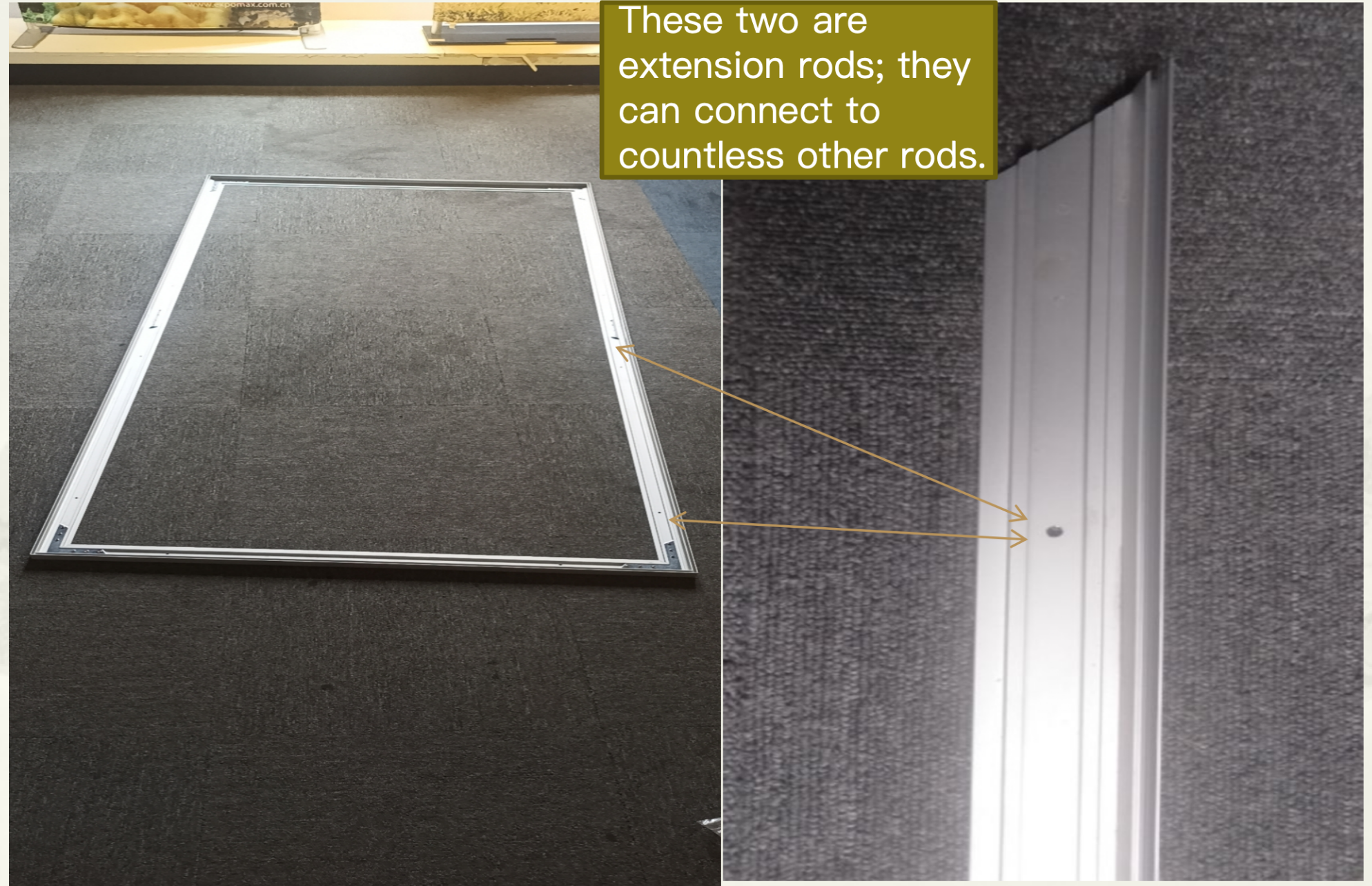

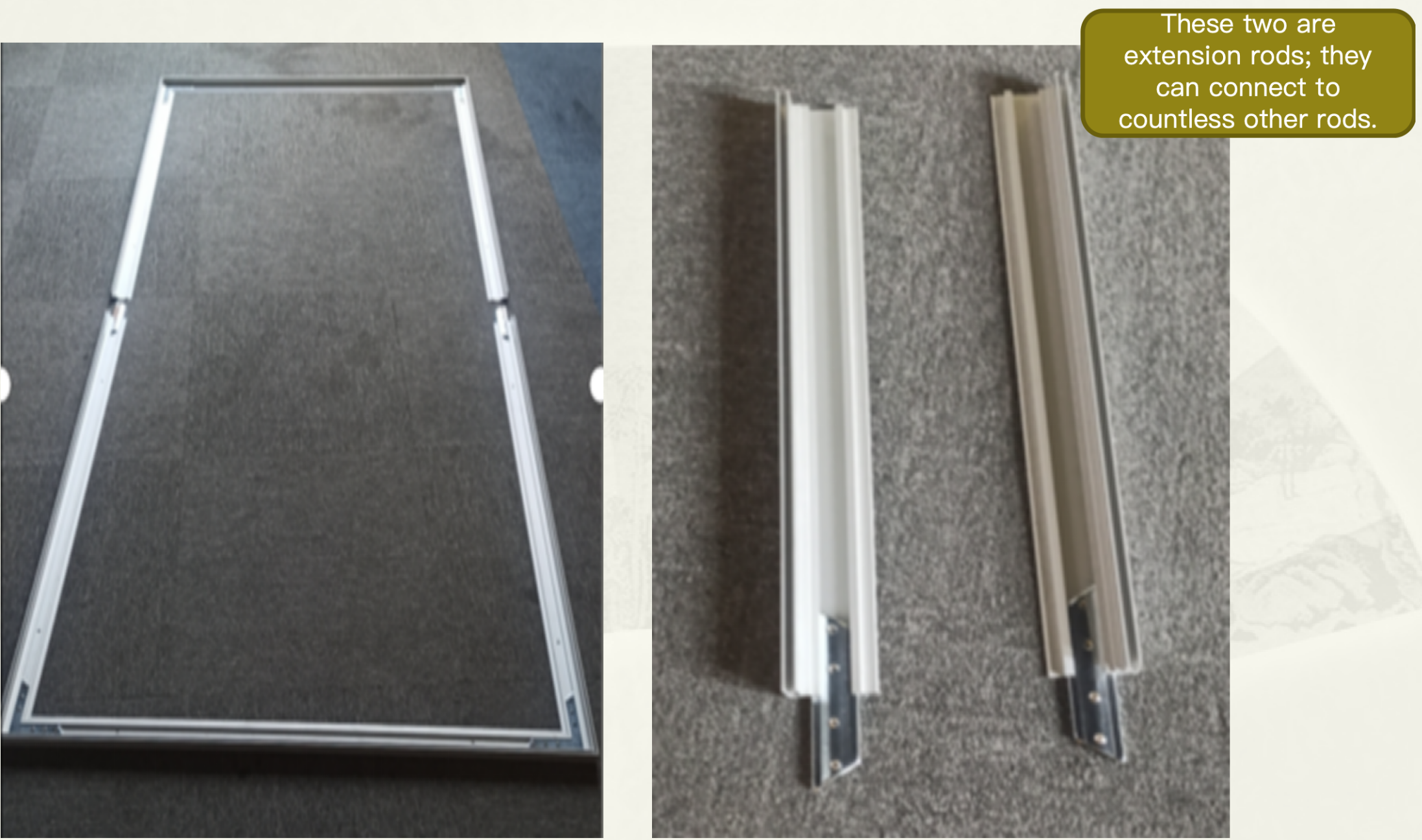

The frame system is built around a 23mm visible-width aluminum profile, combined with precision connectors and corner fittings. When frame sides exceed 1 meter, multiple extension bars are seamlessly joined without compromising stability.
Key structural advantages:
Small outer carton length controlled under 1.2m
Multiple extension bars can be added without quantity limits
Easy disassembly and reassembly for future reuse
Flexible combinations for various wall-mounted applications
To meet market demands for fast delivery and diverse sizing, EM-18A1 is also available as an accessory-only solution.
Customers can:
Purchase aluminum profiles, connectors, and corners separately
Assemble frames on-site based on actual project dimensions
Rebuild or resize existing frames using the same accessories
Reduce express shipping cost and storage space
This approach makes EM-18A1 especially suitable for distributors, print service providers, and system integrators.
24” x 6.56 ft
Net weight: 3 kg / set

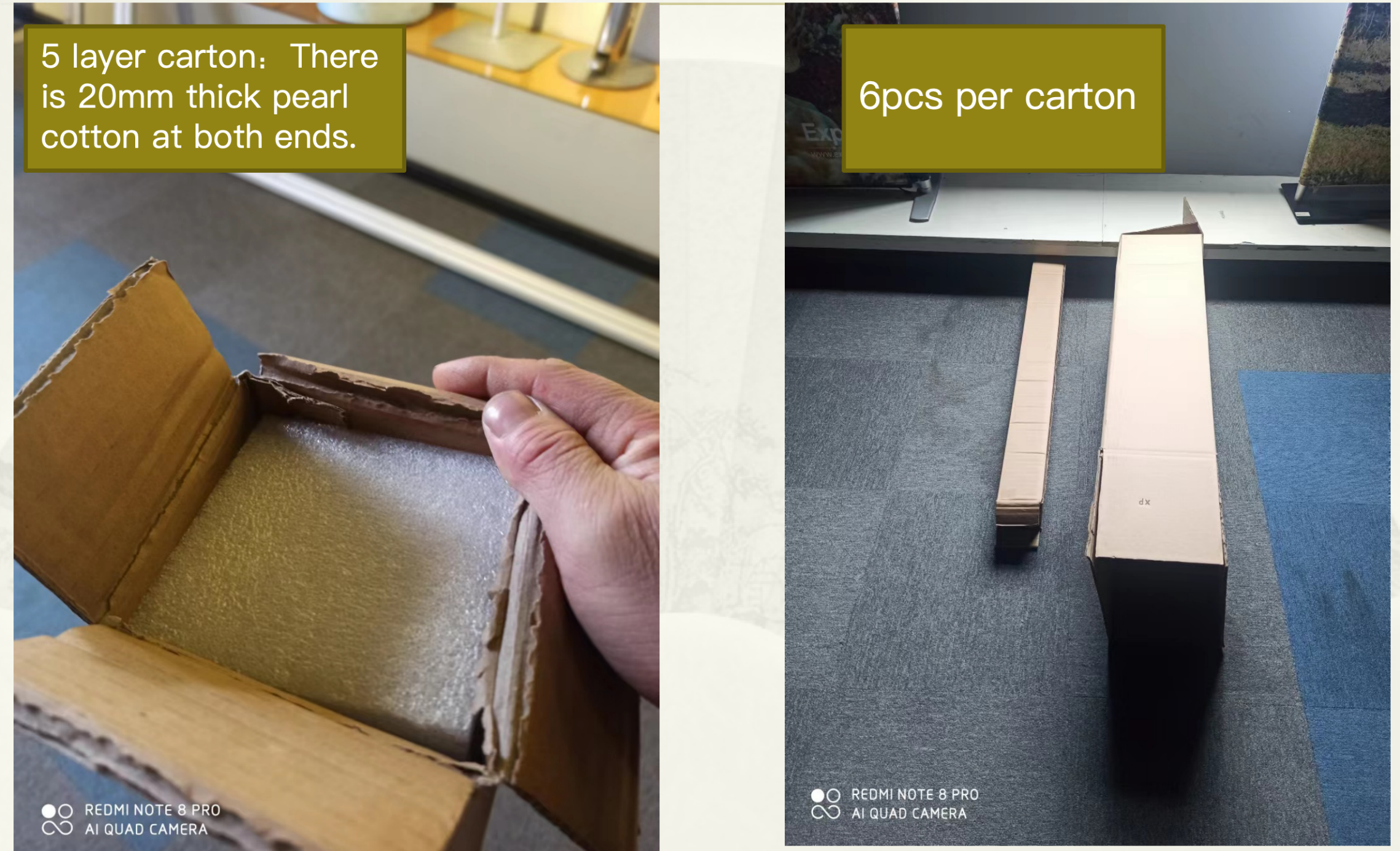

Individual packing: 11 x 11 x 110 cm
Master carton: 6 sets / carton
Gross weight: 20 kg
Carton size: 35 x 24 x 113 cm
8 ft x 6 ft
Net weight: 5 kg / set
Individual packing: 11 x 11 x 110 cm
Master carton: 6 sets / carton
Gross weight: 32 kg
Carton size: 35 x 24 x 113 cm

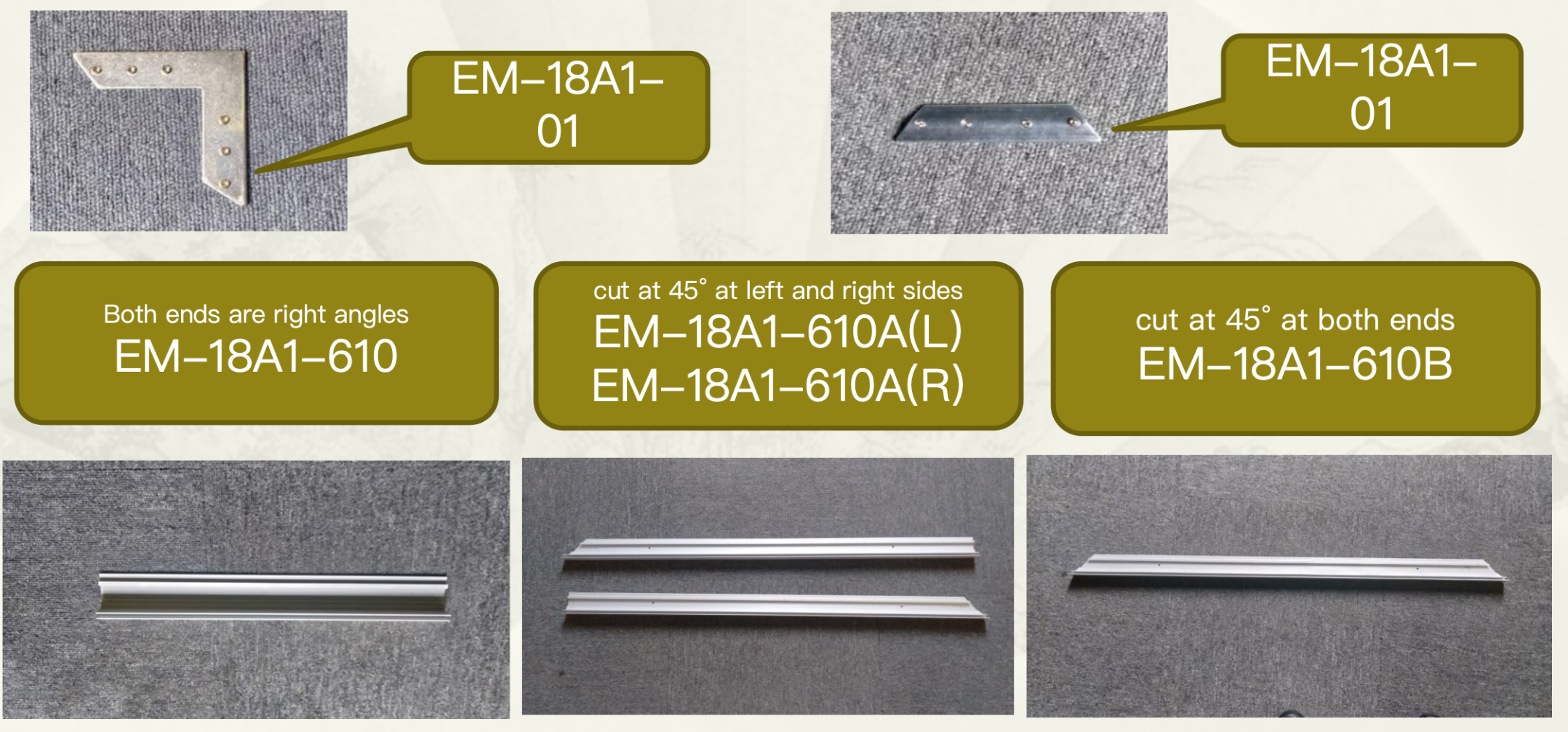

610 mm
707 mm
914 mm
1000 mm
Custom profile lengths are available upon request.

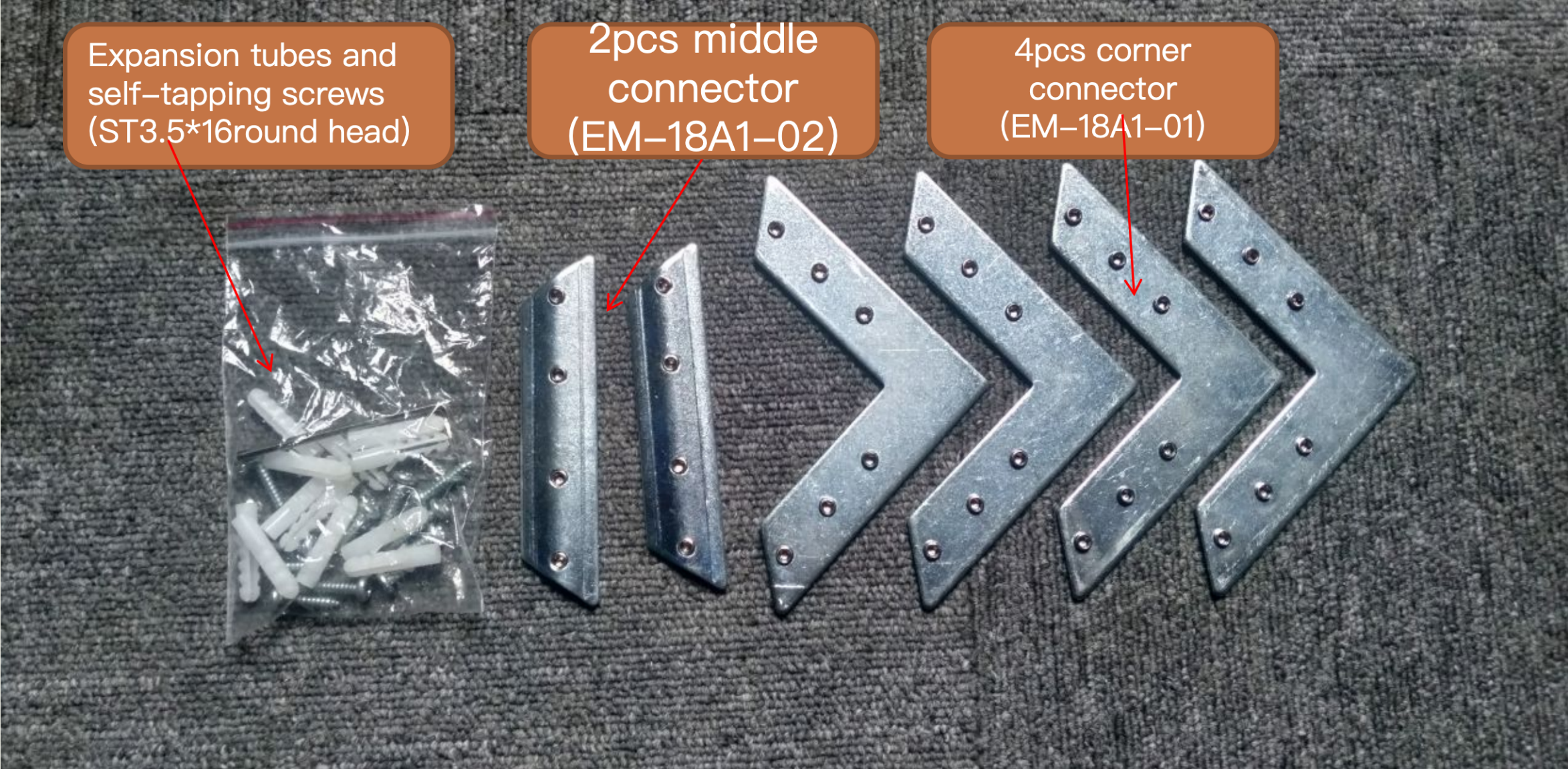

Depending on configuration, EM-18A1 may include:
23mm aluminum SEG profiles
Corner connectors
Middle extension connectors
Hex key
Plastic wall plugs
Self-tapping screws

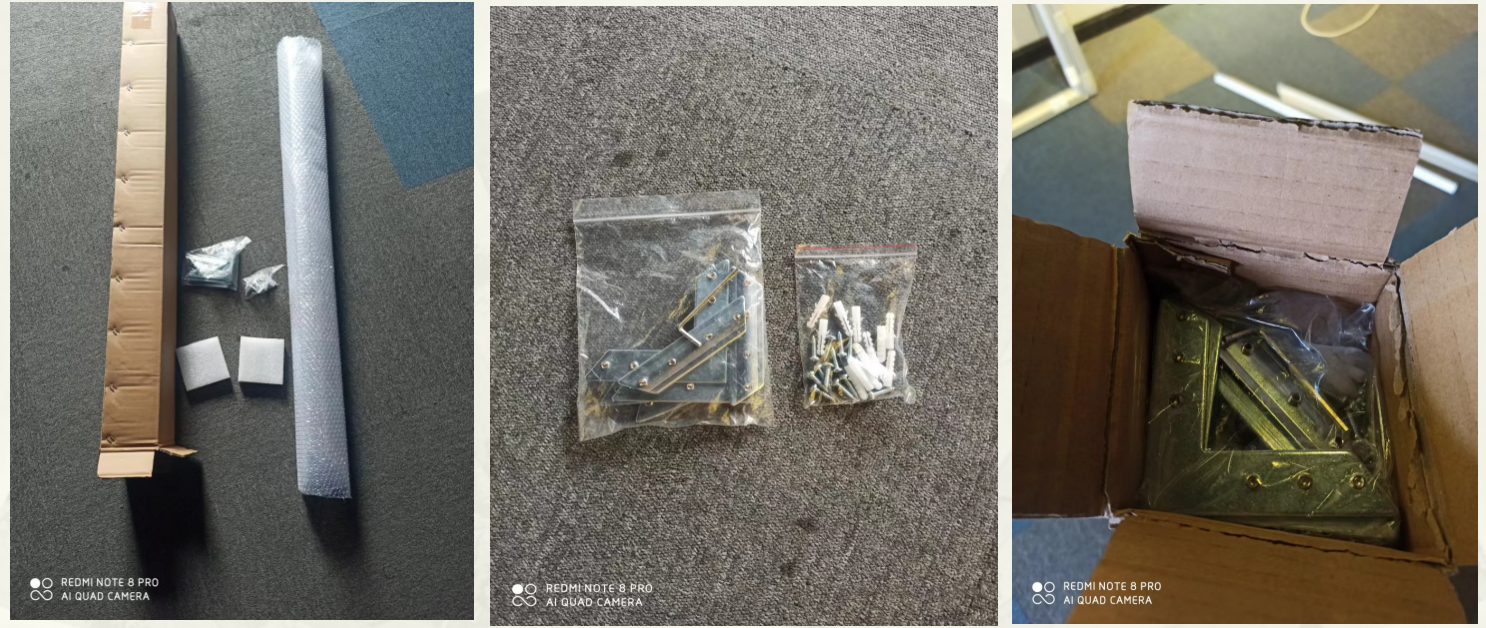

When purchasing accessories separately, each component is individually packed. Packaging can be customized based on order quantity and project requirements.
Optimized for large-format, non-standard SEG frames
Compact packaging for oversized displays
Tool-assisted but simple assembly and reconfiguration
Ideal supplement to EM-18A plastic SEG frame range
Reduced lead time and shipping cost through modular supply
Reusable, reconfigurable, and inventory-friendly system
Contact Us
FAQ
Q: What is the main difference between EM-18A1 and EM-18A?

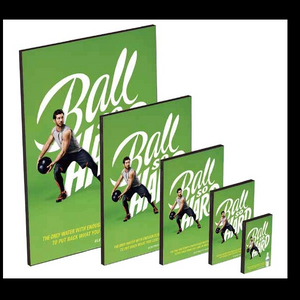

A: EM-18A1 uses a 23mm aluminum profile and is specifically designed for non-standard and large-format frames, while EM-18A is a 25mm plastic SEG frame mainly for standard-sized applications.
Q: Can EM-18A1 be used for very large wall graphics?
A: Yes. When a frame side exceeds 1 meter, multiple extension bars can be connected without limitation, making it suitable for large wall-mounted SEG displays.
Q: Is on-site assembly required?
A: Yes, but assembly is straightforward using included connectors and a hex key. The modular design allows easy resizing and reconfiguration.
Q: Can I buy only accessories instead of a full frame set?
A: Yes. EM-18A1 supports accessory-only purchasing, enabling faster delivery and flexible local assembly.
Q: Are custom sizes available?
A: Yes. In addition to standard profile lengths, custom-cut aluminum profiles can be supplied based on project needs.
