Give your exhibition stand or retail campaign a wide, illuminated brand backdrop. The EXPOMAX 118.11" Wide RGB Flash Lightbox combines LED-backlit SEG fabric with color-changing lighting around an aluminum frame.
Choose a height of 78.74", 88.58" or 98.43" to suit your layout. Tool-free frame connections, replaceable fabric graphics and sectional packing make the system practical for recurring exhibitions, promotional installations and rental programs.
Note: Two models are available. EM-22A has RGB edge lighting on both the front and back of the frame. EM-22B has RGB edge lighting on the front only.
EM-22A/EM-22B
| Quantity: | |
|---|---|
Product Description

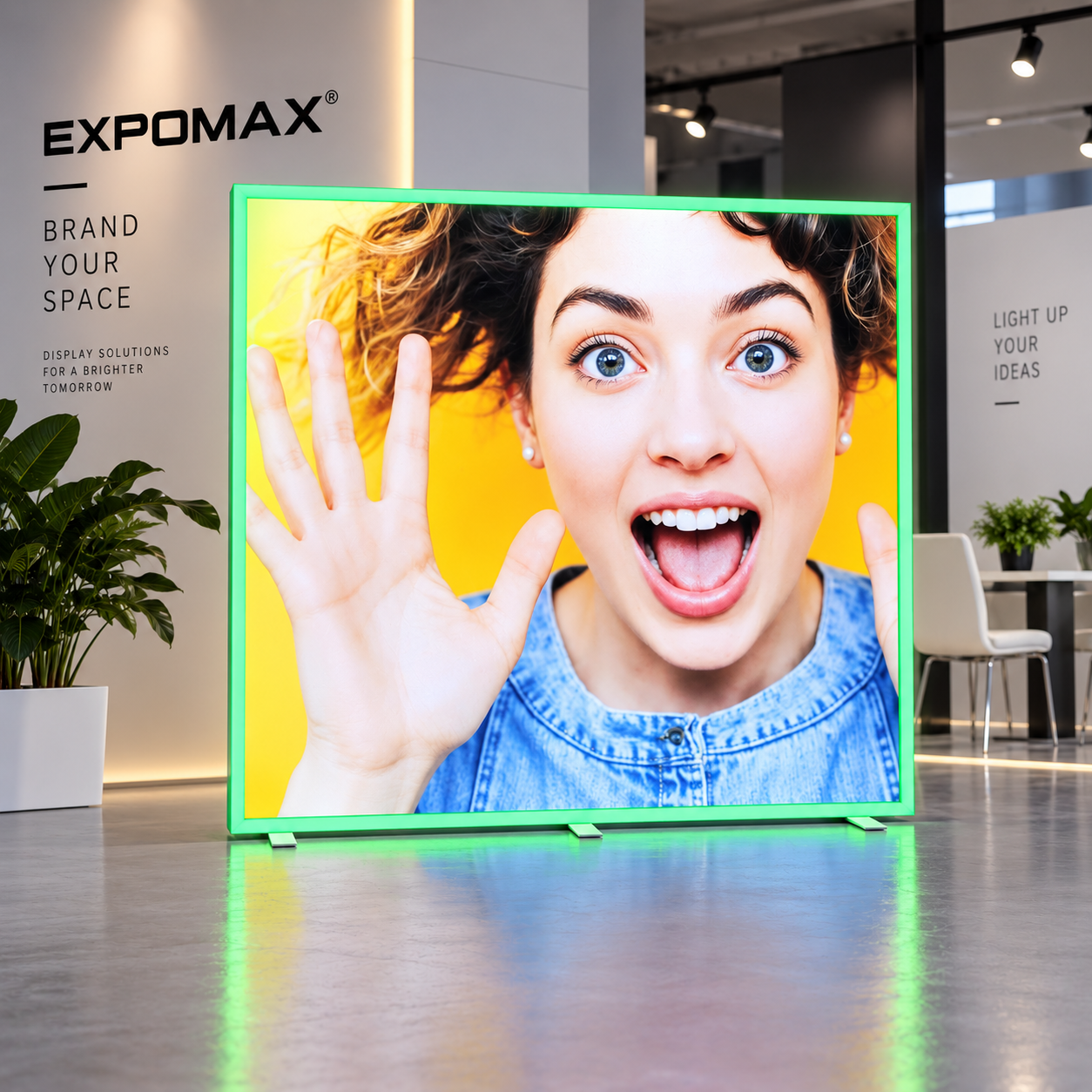

Give campaign photography, product messaging and your logo space to work together across a 118.11" wide illuminated display. This freestanding RGB Flash Lightbox combines a tensioned SEG fabric surface with internal LED backlighting and RGB lighting around the frame.

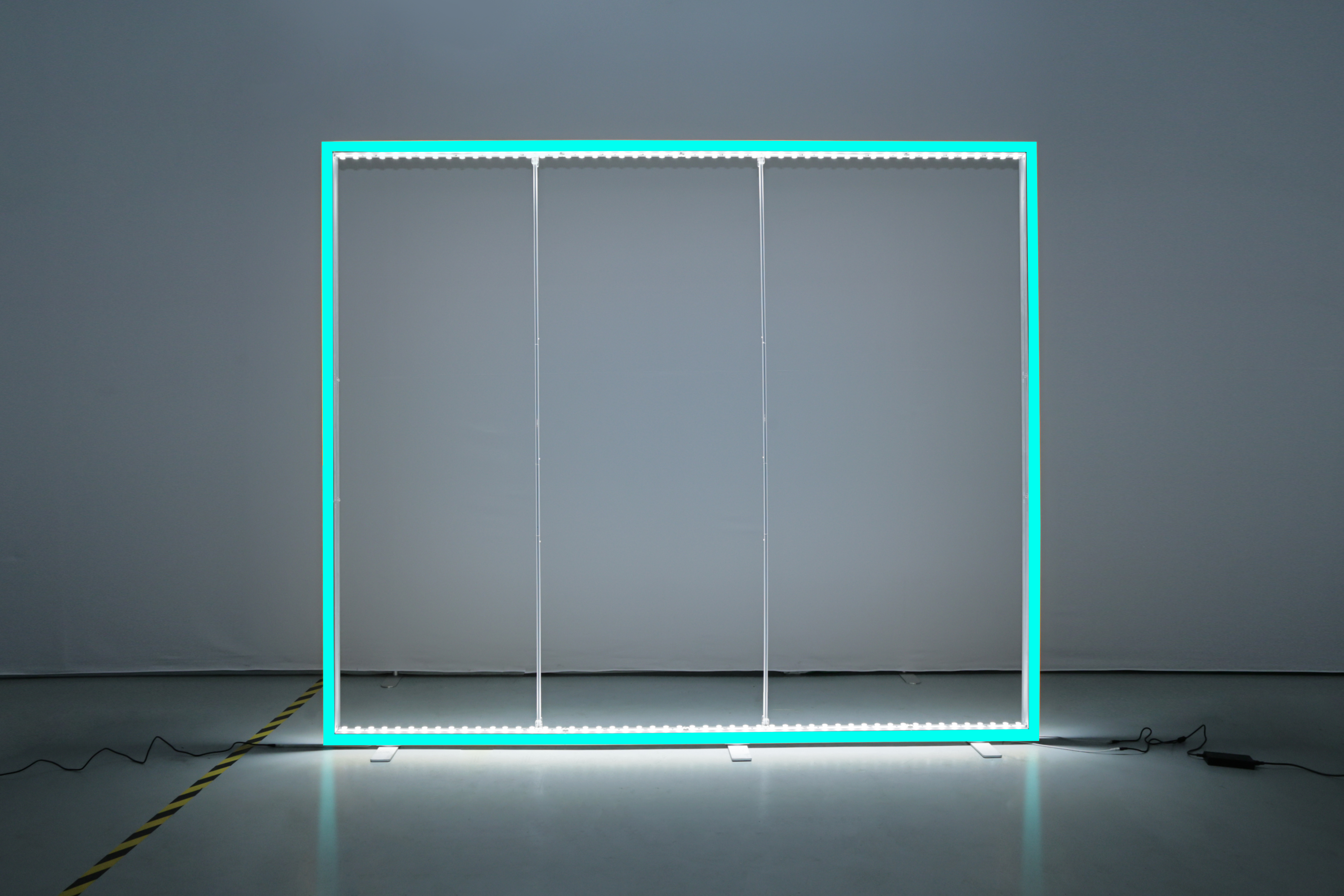

The backlighting illuminates the printed artwork, while the RGB perimeter adds color effects around it. Use the lightbox as an exhibition backwall, a retail campaign display or a branded backdrop for indoor events.
All three configurations share the same width. Select the height according to the venue’s available clearance, the proportions of your artwork and the surrounding display layout.
The 78.74" high option creates a broad landscape format. The 88.58" option adds vertical space for the composition, while the 98.43" option offers the tallest presentation in this width group.
Frame Size W × H (in) | Net Weight (lb) | Gross Weight (lb) | Each Inner Case (in), 2 per Set | Outer Carton (in), 1 per Set |
|---|---|---|---|---|
118.11 × 78.74 | 56.57 | 96.14 | 14.96 × 11.02 × 44.09 | 22.83 × 15.75 × 45.28 |
118.11 × 88.58 | 58.84 | 98.41 | 14.96 × 11.02 × 44.09 | 22.83 × 15.75 × 45.28 |
118.11 × 98.43 | 61.11 | 100.69 | 14.96 × 11.02 × 44.09 | 22.83 × 15.75 × 45.28 |
Each set uses two inner cases packed together in one outer carton. The inner-case dimensions above apply to each individual case.
Dimensions and weights are rounded to two decimal places. Weights are reference values by size; confirm the final packing list for your selected model and graphic configuration.
The model choice determines which faces of the frame have RGB edge lighting.
Model | Front RGB Edge Lighting | Rear RGB Edge Lighting | When to Choose It |
|---|---|---|---|
EM-22A | Yes | Yes | When the illuminated border should be visible from both sides |
EM-22B | Yes | No | When the illuminated border is required on the front |
For an open exhibition layout with visitors approaching from either direction, EM-22A provides RGB effects on both frame faces. For a display whose RGB effects face one main viewing direction, EM-22B provides the front-only configuration.
Specify your fabric graphic requirements separately when ordering. Front-only RGB edge lighting describes the position of the colored border lights; it does not define the number of printed graphic faces.

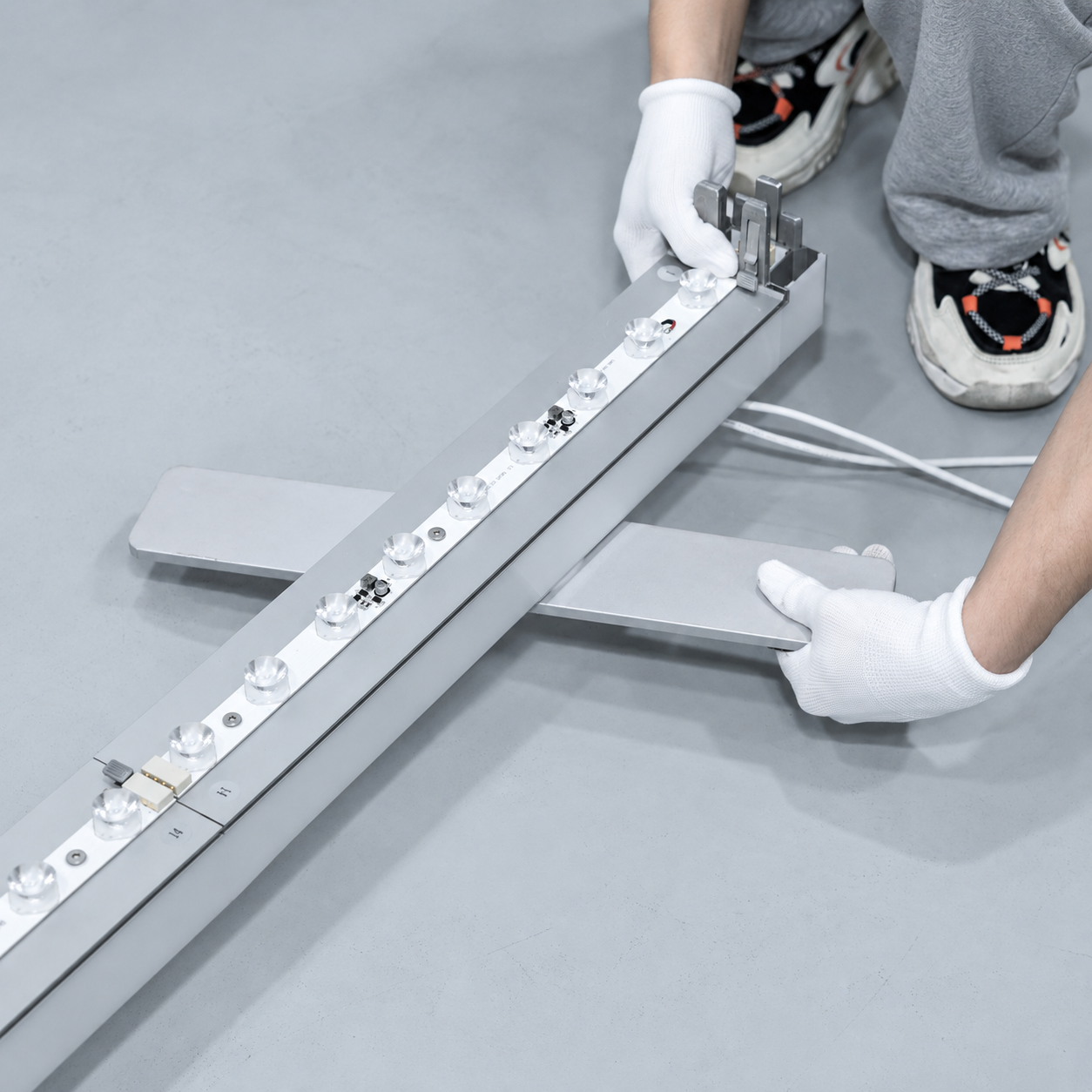

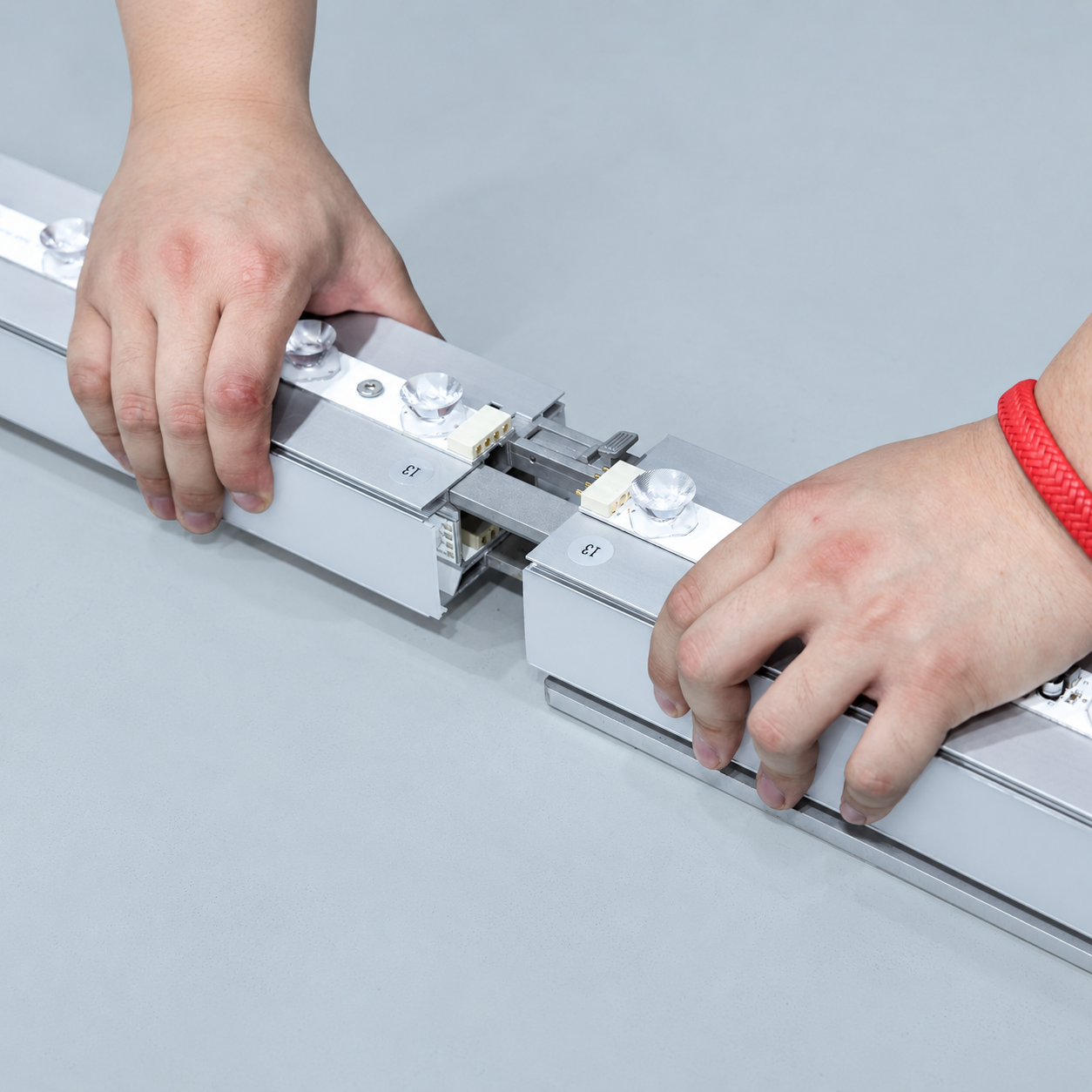

The 1.57" × 3.15" aluminum profile uses tool-free connections for the main frame structure. Push-to-lock joints secure the sections, while integrated spring-loaded electrical contacts connect the lighting circuit at the frame joints.
This reduces separate fastening and connection steps during installation. After the event, the frame dismantles into sections for packing and transport.
SEG stands for Silicone Edge Graphics. A silicone strip around the fabric fits into the frame channel, holding the print under tension for a smooth presentation.
Replace the artwork for a new product launch, seasonal promotion or customer campaign while continuing to use the same frame and lighting system. For distributors and rental businesses, this supports graphic updates for returning customers.

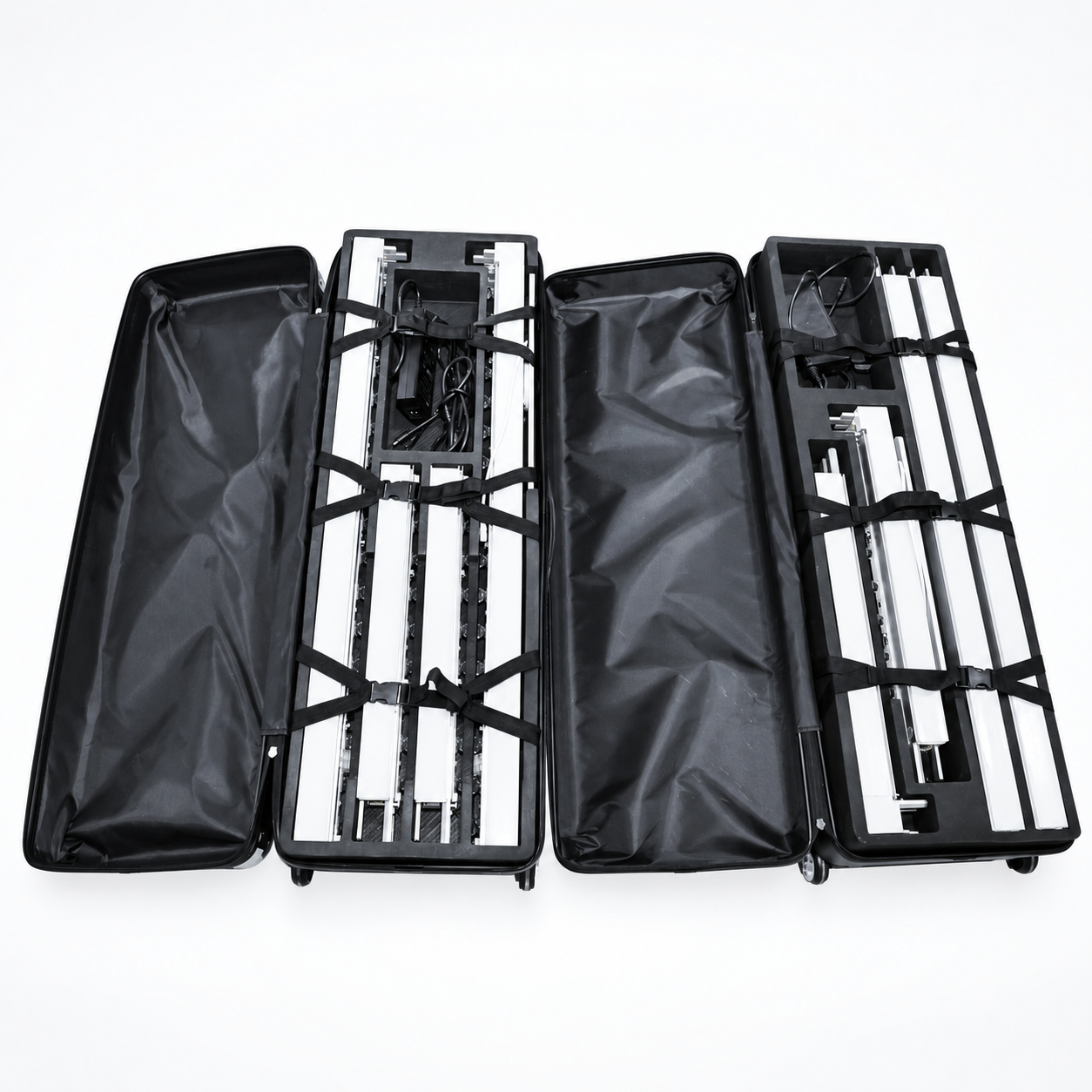

The large assembled display separates into components that fit inside two protective inner cases. Both cases travel together in one outer carton, with the same listed carton dimensions across all three heights.
This packing arrangement gives event teams a defined format for storage and shipment planning. Use the gross weight for the chosen height when requesting freight quotations.
Position the lightbox behind a presentation area or product display to establish the booth’s main visual message. Choose the frame-lighting model according to whether visitors will see the front only or circulate around both sides.
Use the wide backlit graphic for a product range, campaign image or promotional message. Replacement fabric lets the display follow changes in the retail calendar, while RGB effects add color around the artwork.
Create an illuminated branded background for welcome areas, product presentations and indoor event photography. Select the frame height to suit the room and the surrounding event furniture.
Build the graphic around the most important message, with a clear logo, readable copy and imagery suited to a wide display.
Request the artwork template for your selected height before finalizing the print file. The listed frame dimensions describe the assembled hardware; use the production template for the finished graphic dimensions and edge allowances.
If the installation needs different messages on the front and back, include that requirement in your graphic brief.
Planning a distributor order, rental inventory purchase or exhibition project? Contact EXPOMAX with your preferred configuration.
Our team can help confirm the artwork template, printing requirements, packing details and quotation for your 118.11" Wide RGB Flash Lightbox.
Contact us
Product Template& Instruction
FAQ
Internal LED backlighting illuminates the SEG fabric. The RGB lighting adds color effects around the perimeter of the frame.
Yes. Specify EM-22B for front-only RGB edge lighting. Select EM-22A when the frame needs RGB edge lighting on both the front and back.
The supplied specifications list the same outer carton dimensions for all three heights: 22.83" × 15.75" × 45.28". Gross weight varies from 96.14 lb to 100.69 lb according to height.
Yes. The SEG fabric can be removed and replaced for a new campaign. The aluminum frame and lighting system can continue to be used.
Provide the required height, EM-22A or EM-22B model, quantity, graphic configuration, delivery destination and electrical requirements. Include your target delivery date so the order can be planned around the project.
