The Ultimate All-in-One Backlit Display
Dual-Action Illumination: Combines dynamic RGB side columns with high-intensity internal LED backlighting for maximum visual punch.
Integrated Power Supply: Clean, professional look with a built-in power system—no messy external transformers or cables.
Toolless "Push-to-Lock" Setup: 80mm aluminum profile designed for rapid, tool-free assembly by a single person.

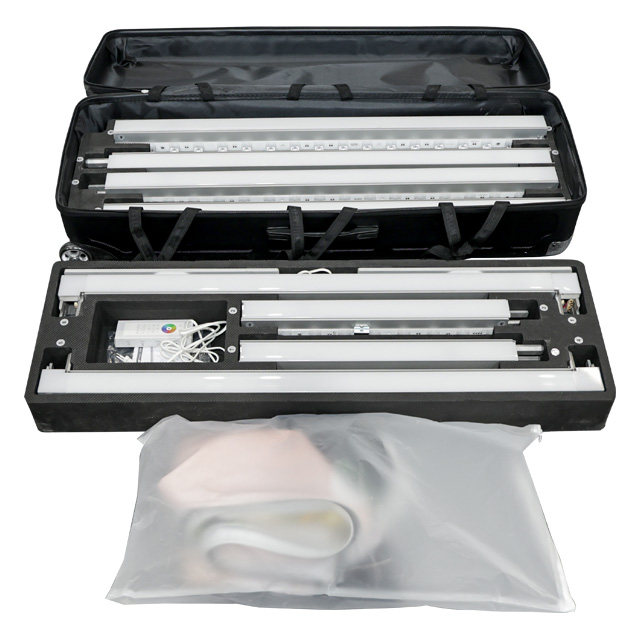

23% Lighter & Ultra-Portable: Engineered for efficiency, it’s 23% lighter than competitors and includes a premium EVA wheeled case.
Full Spectrum Remote Control: Adjust white light temperature, 7 RGB colors, and dynamic flash modes to suit any exhibit environment.
EM-22AB
| Quantity: | |
|---|---|
Product Description

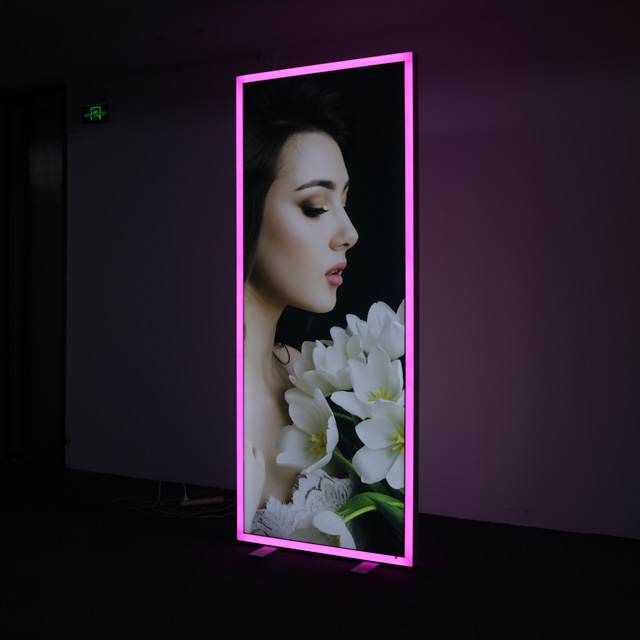

The EM-22AB RGB Flash Lightbox represents the pinnacle of exhibition technology. Unlike standard frames, the EM-22AB is a fully illuminated SEG Backlit Lightbox that combines two powerful lighting systems. It features the signature RGB Flash color-changing columns on the sides AND integrated internal LED backlighting to ensure your graphics are saturated with vibrant, uniform light from edge to edge. Designed for high-impact branding, this 80mm aluminum system is the ultimate tool for trade show exhibitors seeking maximum visibility.

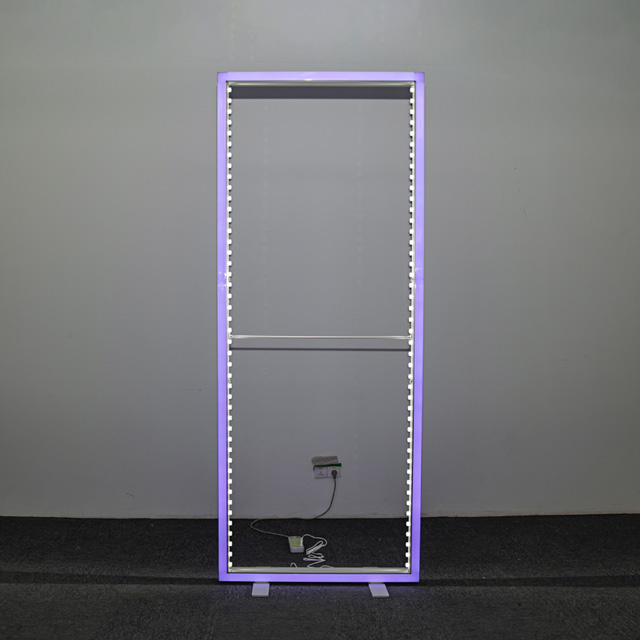

The EM-22AB offers a dual-lighting experience. While the internal LEDs provide a steady, bright white light to pop your graphics, the RGB Flash columns allow you to customize the frame's perimeter. Use the remote to:
Switch between Cool White and Warm White for the perfect ambiance.
Cycle through 7 solid colors (Red, Blue, Green, Yellow, etc.).
Activate Dynamic Gradient & Flash Modes to draw traffic from across the show floor.
Adjust Brightness & Speed to match the energy of your booth.

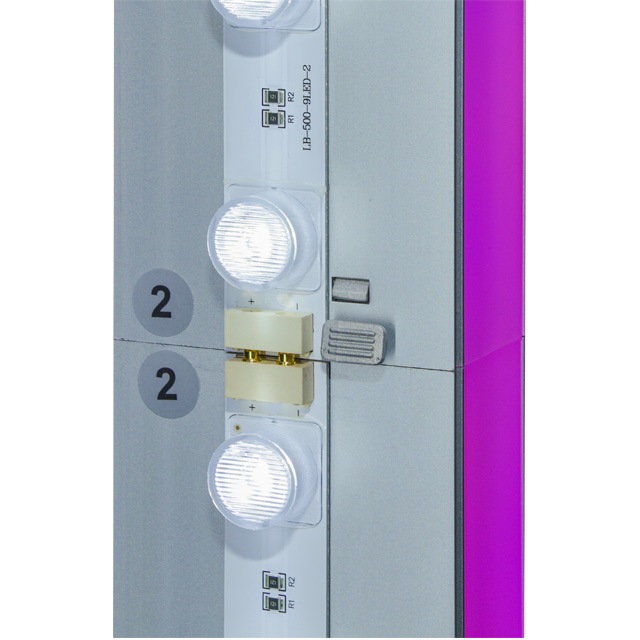

Designed for the modern exhibitor, the EM-22AB utilizes a tool-free design. The "Press-to-Go" locking mechanism allows staff to assemble 8-foot towers in under 10 minutes, significantly reducing labor costs at venues like Tampa or Las Vegas.
Say goodbye to bulky external transformers. The EM-22AB features a discreet built-in power supply, allowing you to plug directly into the outlet. This creates a seamless, high-end look for retail storefronts and premium exhibit booths.
Engineered for Silicon Edge Graphics (SEG), the 80mm profile provides perfect tension. We recommend high-density backlit fabric for double-sided printing to ensure zero hot-spots and maximum color depth.
Frame Size (W x H) | Graphic Size | Packing Size | Gross Weight | Qty/CTN |
39.37" x 39.37" | 39.37" x 39.37" | 14.96" x 11.02" x 44.09" | 24.25 lbs | 1 |
39.37" x 78.74" | 39.37" x 78.74" | 14.96" x 11.02" x 44.09" | 46.30 lbs | 1 |
39.37" x 88.58" | 39.37" x 88.58" | 14.96" x 11.02" x 44.09" | 48.50 lbs | 1 |
39.37" x 98.43" | 39.37" x 98.43" | 14.96" x 11.02" x 44.09" | 50.70 lbs | 1 |
Profile Material: Anodized Aluminum (80mm width)
Lighting Source: Side RGB Flash Columns + Internal LED Backlighting
Power Supply: Internal (Built-in)
Graphic Attachment: Silicon Edge (SEG)

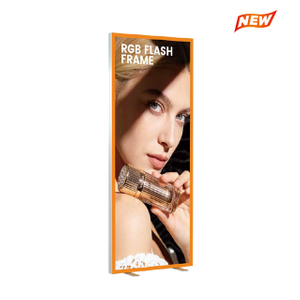

Q: What is the difference between the EM-22AA and EM-22AB?
A: The EM-22AA is a decorative RGB frame, whereas the EM-22AB is a full Backlit Lightbox. The AB model includes internal LED lights that illuminate the graphic from behind, making it significantly brighter and more effective for dark or high-traffic environments.
Q: How does the internal power supply work?
A: The power brick is hidden within the 80mm aluminum profile. You simply connect the main power cord to the base of the unit, eliminating messy external wiring and making it safer for public spaces.
Q: Is the light even across the whole 1-meter width?

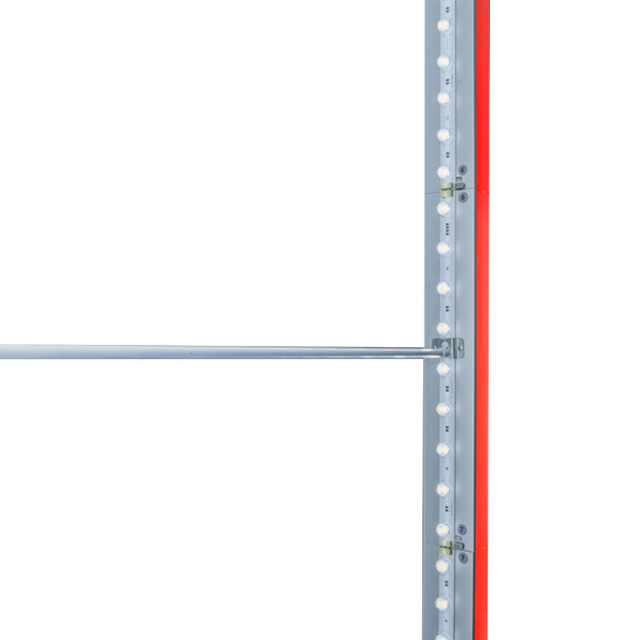

A: Yes. By combining side-lighting with internal ladder LEDs, the EM-22AB provides uniform light distribution with no shadows or "hot spots" in the center of the graphic.
Q: Can I use this for a single-sided display?
A: While we recommend double-sided graphics for the best visual impact, you can use a block-out fabric on the back for single-sided applications.

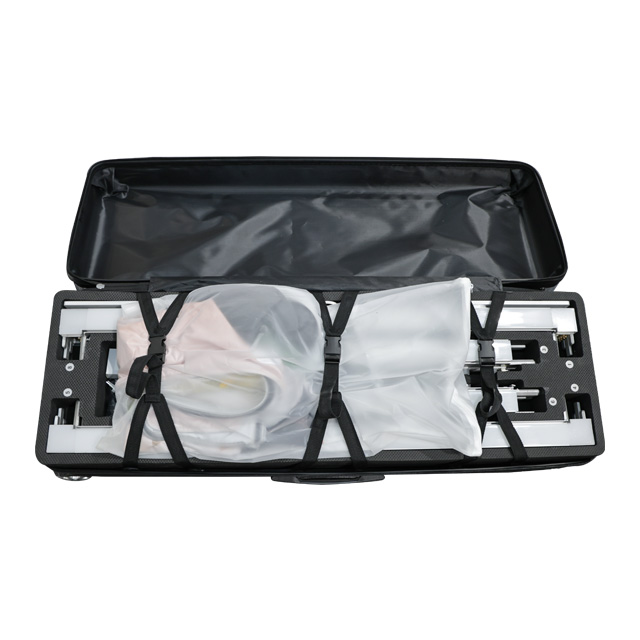

Q: How durable is the EVA wheeled case?
A: Our EVA case is semi-rigid and shock-absorbent, specifically engineered to withstand the rigors of air travel and drayage at trade show venues.
