Product Details and Package

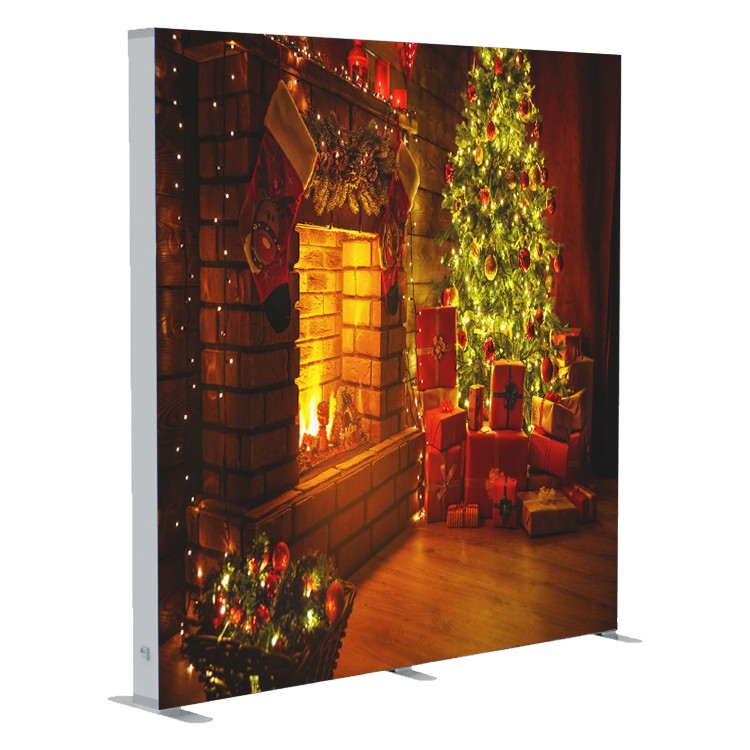

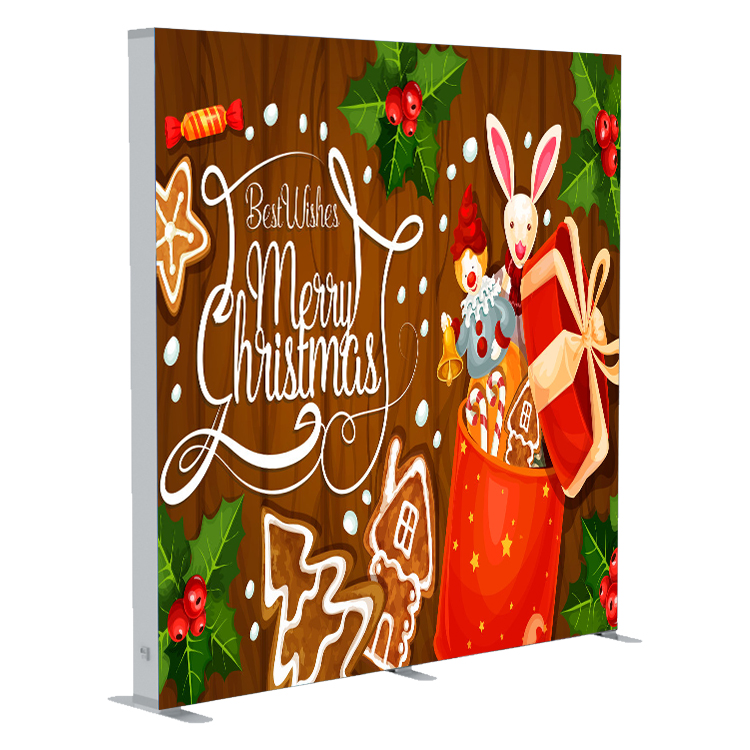

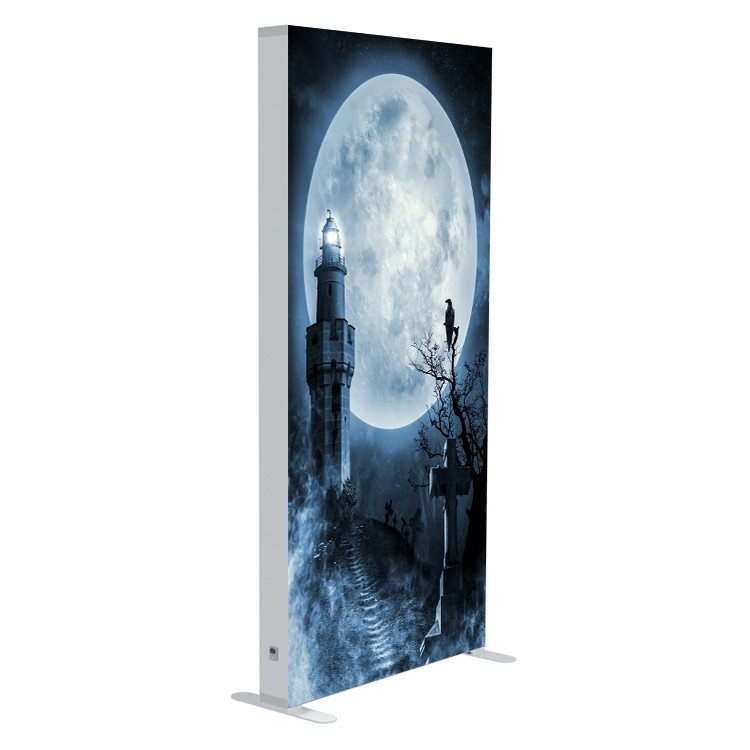

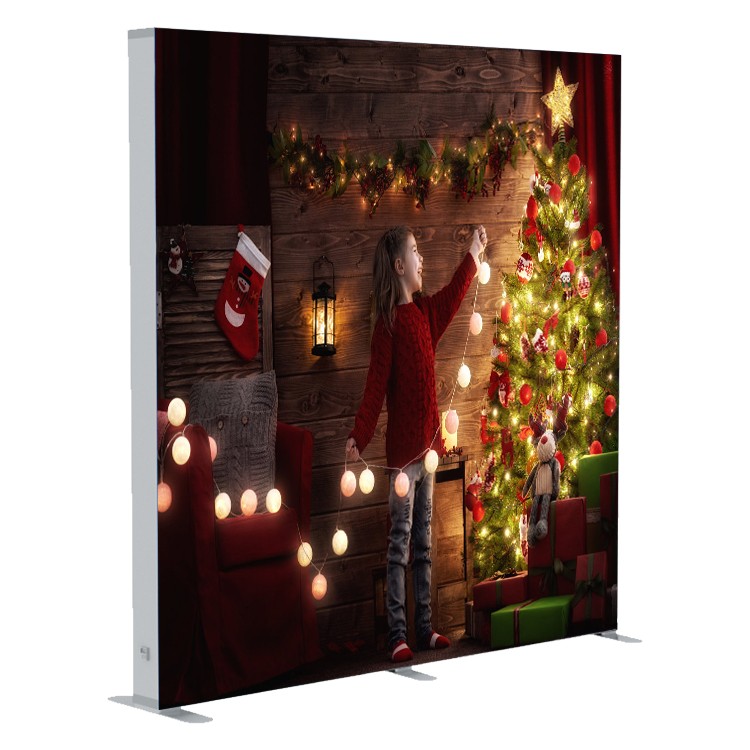

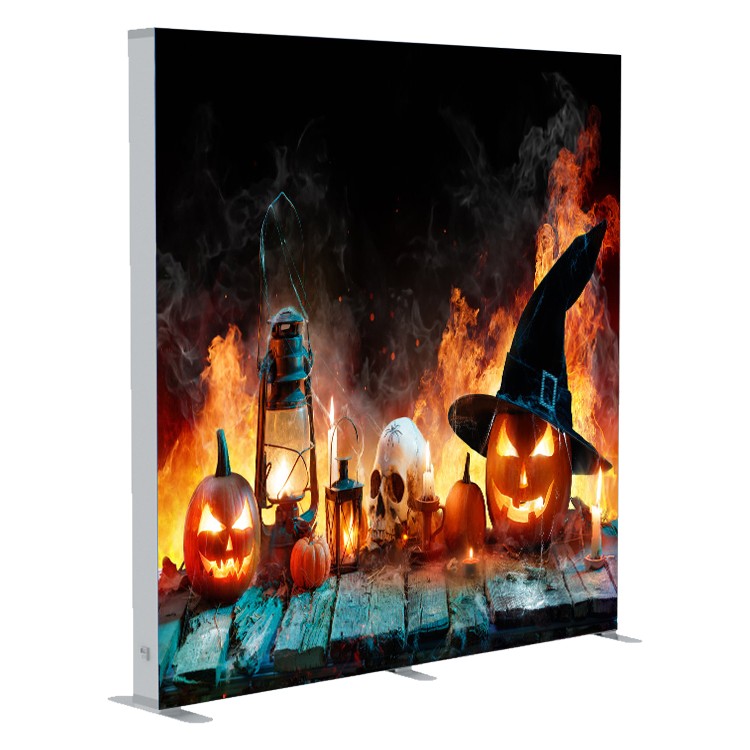

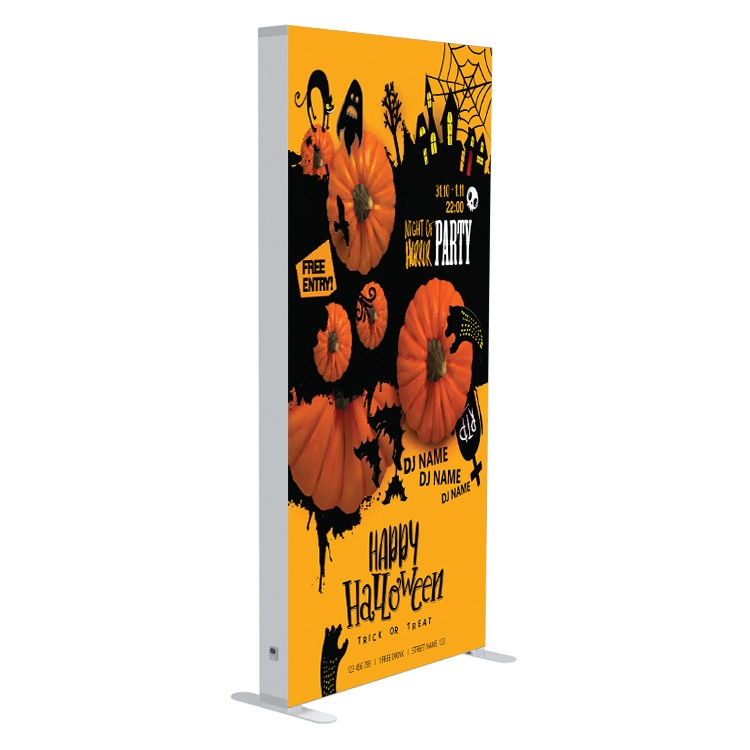

The newly released SEG lightbox is featured with a 120mm depth, surpasses the previous 80mm and 100mm versions. The increased depth makes larger sizes possible and also improves the overall stability. Hardware of the lightbox is composed of 120mm SEG Aluminum, plastic connectors and modular light strips with Φ20mm aluminum supporting poles inside. Width of the lightbox is limited to whole meters because length of the light strip is 1 meter and to change the length will need to make new mould.
The backlit fabric graphics are dye-sub printed using the latest printing technology to provide rich, vibrant color images that are durable and wrinkle resistant. These graphics are printed and hand-sewn to ensure the highest quality and proper fit. Regardless of any marketing claims, there is no such thing as a wrinkle-free fabric. Backlit fabric graphics are wrinkle resistant, but after folding them and packing them with the display, they are guaranteed to be wrinkled. The reason they are called wrinkle-free is because they are stretched tight when attached to the frame which is assumed to smooth out any wrinkles, and this generally does a good job.
The EM-18F system is composed of:
120mm SEG Aluminum Profiles – Stronger, thicker, and more rigid to support large-scale builds.
Modular LED Light Strips – Designed in 1-meter lengths for consistent illumination and efficient mass production.
Reinforced Φ20mm Inner Support Poles – Strengthens structural integrity for heights up to 2.5m and widths up to 6m.
Plastic Connectors – Provide fast, tool-free frame assembly for quicker build times and lower labor cost.
Due to the standardized 1m LED strip length, lightbox widths follow whole-meter increments, ensuring perfect component compatibility and streamlined stocking for dealers.
The EM-18F uses premium dye-sublimation backlit fabric graphics, produced with state-of-the-art printing technology for:
Rich, vivid color reproduction
Uniform glow across the entire display
High durability and fade resistance
Although no fabric is truly 100 percent wrinkle-free, our backlit SEG graphics are designed to stretch evenly within the frame, minimizing visible wrinkles once tensioned—offering a clean, professional, frameless illuminated presentation every time.
For convenience and easier installation at events, the EM-18F features:
Pre-installed power adaptor mounted directly onto the aluminum frame
Hidden wiring once the graphic is installed
On/off switch located near the adaptor, accessible without removing graphics
This plug-and-play electrical layout significantly reduces setup time while maintaining a clean aesthetic appearance—ideal for rental companies, dealers, and on-site event teams.
Thanks to its upgraded depth and reinforced internal structure, EM-18F supports:
Lightboxes up to 6m wide × 2.5m high
Stable performance even in large-format applications
The ability to be combined and reconfigured freely to create:
10x10 ft backlit booths
20x10 ft backlit booths
20x20 ft island displays
Custom modular illuminated walls, arches, cubes, and corners
This makes EM-18F one of the most versatile systems for dealers—one product line that covers multiple booth demands.
To help distributors and event companies reduce logistics cost and protect hardware during transport, packaging includes:
Sizes 1m & 2m: Oxford bag inlaid with EVA foam
Lightweight, durable, ideal for show-to-show transport
Sizes 3m and above: Heavy-duty flight case inlaid with EVA
Maximum protection for large components
Allows secure stacking and international shipping
This packaging approach offers the best balance of protection, portability, and cost efficiency.
Higher margin due to premium positioning
Designed for repeat, scalable booth projects
Fast assembly system ideal for on-site service teams
Modular SKU strategy simplifies inventory management
Long-term durability reduces after-sales issues
Compatible with SEGQUICK backlit booth solutions, boosting cross-sales
Product Template Download and Set up
Contact Us
FAQ
The EM-18F features a deeper 120mm profile, which significantly increases structural rigidity and allows the system to support larger-format displays up to 6 meters wide and 2.5 meters high. The deeper frame also improves heat dissipation, enhances LED performance, and achieves superior backlit uniformity.
The system is built using:
120mm aluminum extrusions for strength and durability.
Plastic connectors for fast, tool-free assembly.
Modular LED light strips designed in standardized 1m segments.
Φ20mm reinforced inner support poles to stabilize large-size installations.
Because the modular LED system is manufactured in 1-meter strip segments. Changing LED strip lengths requires new tooling, so whole-meter sizes ensure the best stability, compatibility, and cost-efficiency for dealers.
The EM-18F uses high-output, modular LED strips engineered for uniform brightness across the entire display surface. The 120mm depth ensures an ideal diffusion distance, eliminating hotspots and shadows.
No fabric is truly wrinkle-free, but EM-18F uses dye-sublimation backlit fabric that is:
Wrinkle resistant
Stretchable
Designed to appear smooth once installed
Any folds from transport typically disappear once the SEG graphic is tensioned onto the frame.
To simplify setup, the power adaptor is pre-installed on the frame. Once the graphic is mounted, all wiring becomes hidden. A small on/off switch next to the adaptor makes operation easy and accessible.
No. The frame uses a slide-and-snap system, and the modular LEDs are pre-mounted. Installers can build the entire lightbox without tools, making it ideal for dealer rental programs and frequent show setups.

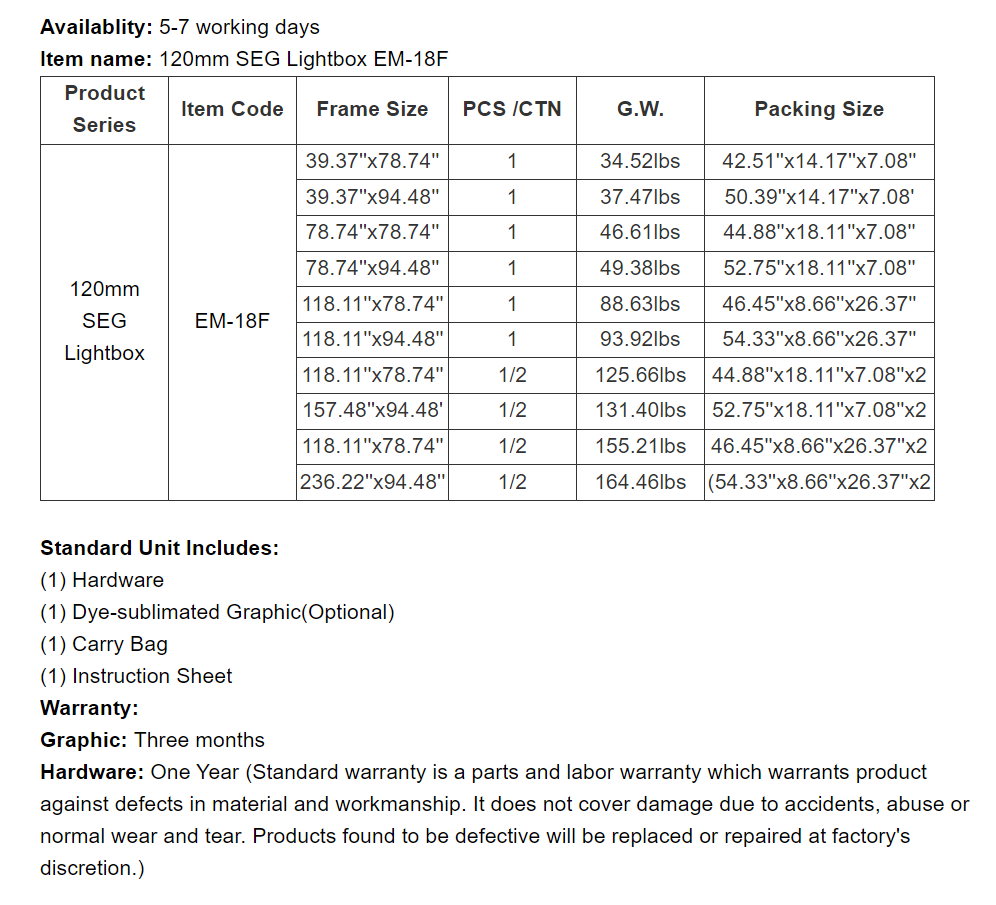

Standard sizes follow whole-meter widths:
1m, 2m, 3m, 4m, 5m, 6m widths
Heights: 2m, 2.2m, 2.5m
Custom heights and special combinations can be requested for bulk orders.
Absolutely. EM-18F is a modular system that can be freely connected to create:
10x10 ft booths
20x10 ft booths
20x20 ft booths
This makes it a top choice for event companies and dealers building repeat rental setups.
Graphics are printed using high-resolution dye sublimation, delivering vivid colors, excellent light transmission, and long-term durability.
Packaging varies by size:
1m / 2m lightboxes: Oxford bag with EVA lining
3m and above: Heavy-duty flight case with EVA lining
This ensures safe shipping and easy transport for installers.
Yes. The reinforced aluminum frame, modular LEDs, and upgraded packaging make EM-18F durable enough for high-frequency installations, rentals, and touring exhibits.
Dealers can order:
LED strips
Connectors
Aluminum extrusions
Power adaptors
SEG graphics
The modular design makes maintenance inexpensive and easy.
