Product Information
Elevate your 10×10 ft exhibit space with the Booth105-B3B1B1B3, a fully backlit, frameless SEG (silicone-edge graphic) lightbox booth that delivers stunning glow-from-within illumination and a clean, modern aesthetic. Built around our heavy-duty 120 mm aluminum extrusion system with integrated high-output LED ladder lights, this complete turnkey solution creates a seamless, vibrant glowing wall that makes your brand impossible to ignore—even in the brightest show halls.

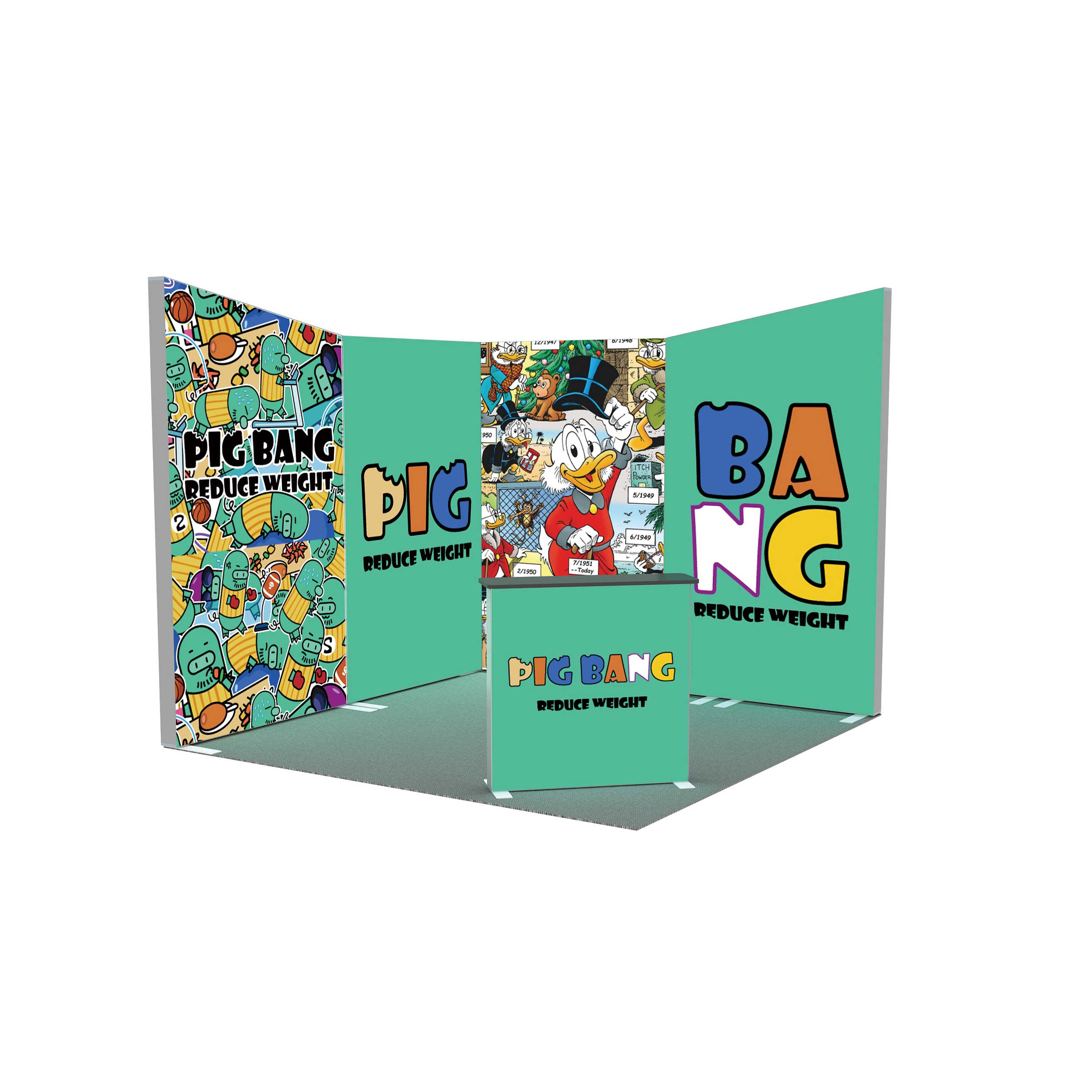

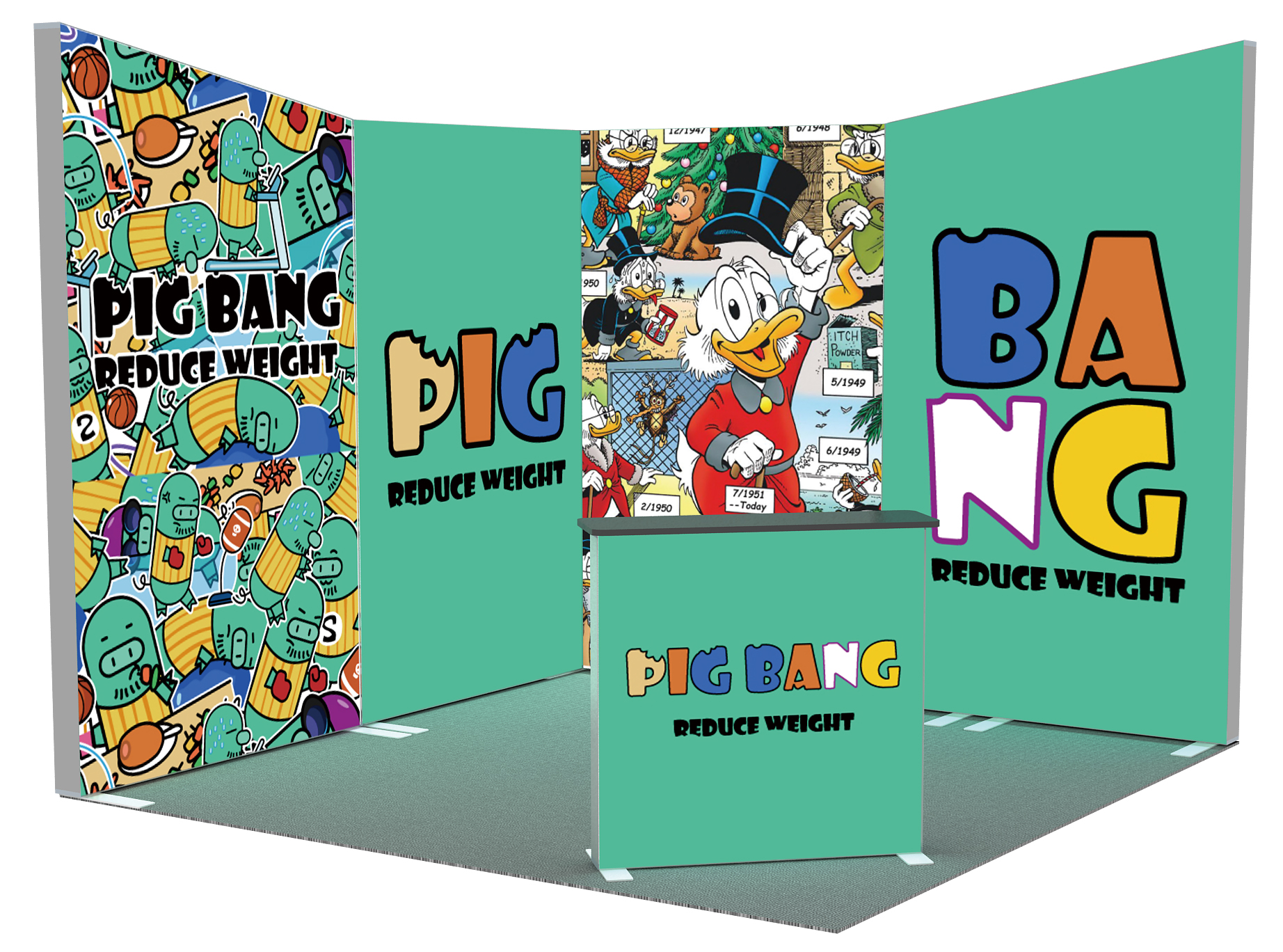

The package combines two B3 tall backlit panels, two B1 standard panels, and a front-illuminated SEG counter (EM-08FA) to form a classic open-front corner configuration with maximum visual impact from every angle. All graphics are dye-sublimated on premium backlit textile for brilliant color accuracy, perfect diffusion, and a completely frameless edge-to-edge finish.
120 mm Heavy-Duty SEG Lightbox Frames – Robust aluminum/PVC extrusion engineered for rock-solid stability and years of reuse
Ultra-Bright Edge-to-Edge LED Backlighting – Even, high-lumen illumination with no hot spots or shadows
True Frameless Look – Silicone-edge graphics push flush into the frame for a sleek, contemporary appearance
100% Tool-Free Assembly – Push-button connectors and pre-installed LED modules make setup fast and intuitive
Fully Modular & Reconfigurable – Compatible with all A/B/C/D-Series SEG lightboxes for future upgrades
Vivid Dye-Sublimation Backlit Fabric – Wrinkle-resistant, washable, and color-consistent even under intense lighting
Portable & Travel-Friendly – Breaks down into compact wheeled cases and padded carry bags
Trade show & exhibition 10×10 inline or corner booths
Retail pop-ups and in-store promotions
Product launches, press conferences, and corporate events
Photo backdrops and experiential marketing activations

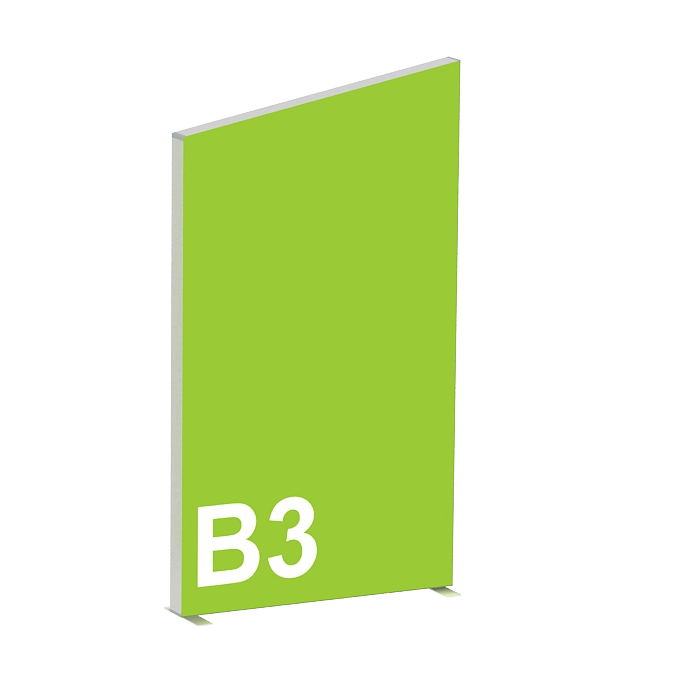

SEG120B3 Backlit Lightbox × 2
Visible Frame Size: 1475 × 2538/2280 mm (tall portrait)
Graphic Size: 1560 × 2600 mm
Gross Weight: 17.1 kg each
Packing: 142 × 48 × 20 cm each

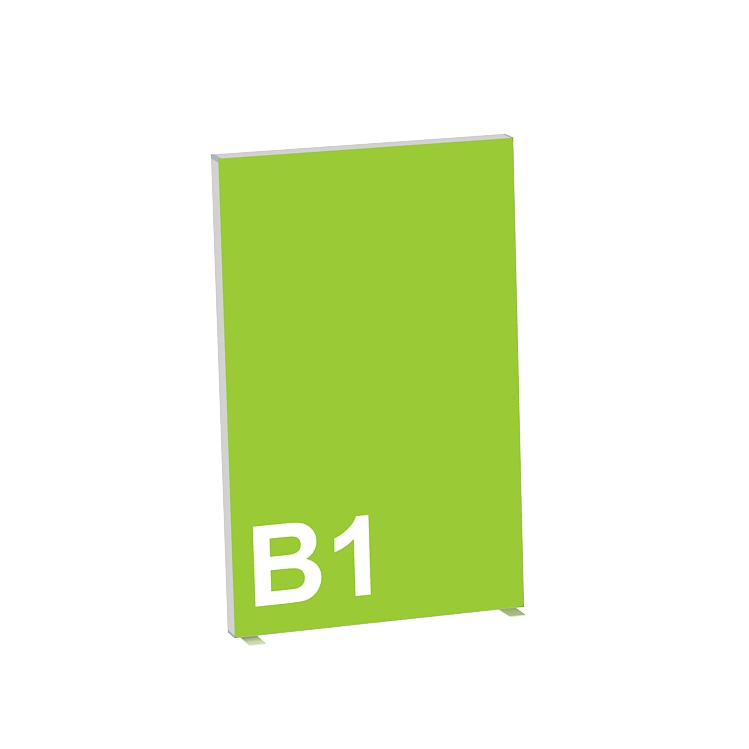

SEG120B1 Backlit Lightbox × 2
Visible Frame Size: 1475 × 2280 mm (standard portrait)
Graphic Size: 1560 × 2330 mm
Gross Weight: 16.5 kg each
Packing: 142 × 48 × 20 cm each
EM-08FA Front-Illuminated SEG Counter × 1
Counter Size: 1000 × 1035 × 450 mm (W×H×D)
Graphic Size (front): 1000 × 1000 mm
Gross Weight: 12.5 kg
Packing: 113 × 22 × 40 cm
Total Shipping Weight (all components): ≈ 78.2 kg All frames include pre-wired LED modules, power supplies, connectors, and adjustable feet.
Product Template Download and Set up
Contact Us
FAQ
Q: How long does it take to set up the entire booth?
A: Two people can fully assemble the booth (frames + graphics + counter) in 30–45 minutes on the first try, under 30 minutes with experience.
Q: Are the graphics single-sided or double-sided?
A: Standard package includes single-sided backlit graphics(One side printed fabric and other side white fabric). Double-sided graphics are available on request at additional cost.
Q: How bright is the illumination?
A: Approximately 5,000–6,000 lux at the fabric surface — bright enough to stand out in any convention center while remaining eye-comfortable.
Q: Can I replace or update graphics later?
A: Yes — SEG graphics slide out and new ones push in within minutes. No tools required.
Q: Is the booth configurable in other layouts?
A: Absolutely. The four lightboxes can be rearranged into straight, L-shape, U-shape, or combined with additional modules for 10×20 or larger islands.
Q: Can this booth be used outdoors?
A: Indoor use only. The system is not weather-rated.
Turn your 10×10 space into a glowing brand beacon — choose the Booth105-B3B1B1B3 backlit SEG booth package today.
